Resin-Bonded Metal Cutting Discs
Resin-Bonded Metal Cutting Discs
Product Description

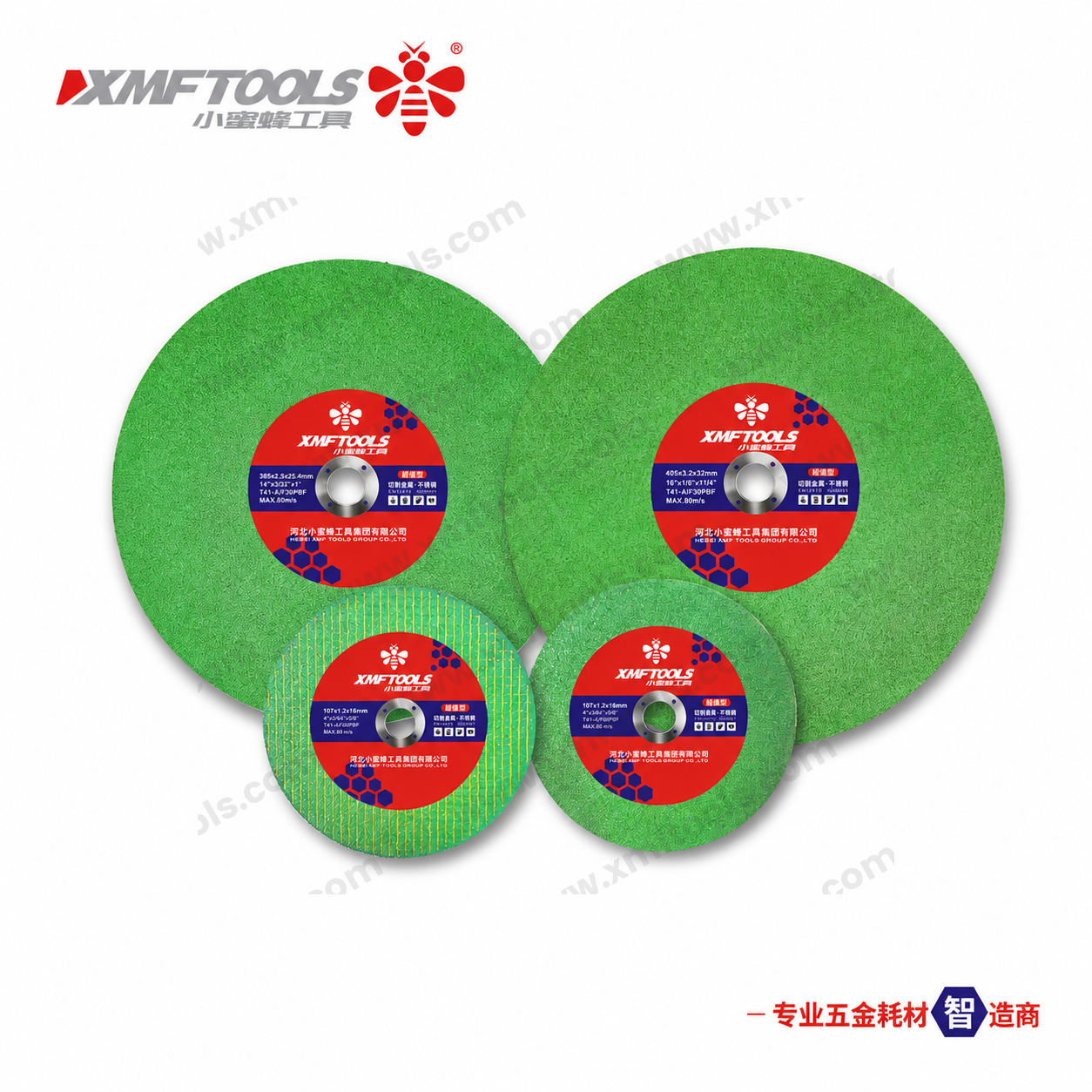

XMF resin-bonded metal cutting discs are designed for dry, straight cutting of carbon steel, stainless steel and other common metal workpieces. The combination of selected abrasive grains, resin bonding and fiberglass reinforcement provides a practical balance of fast cutting, narrow kerf, operating stability and service life for professional metal fabrication.
Available standard sizes include 105 mm, 115 mm, 125 mm, 180 mm and 230 mm. This abrasive cutting discs range covers common angle-grinder applications from thin sheet and small-diameter tubing to larger pipes, profiles and structural metal components.
|
Product Code |
Outside Diameter × Thickness × Arbor Hole (mm) |
Maximum RPM |
Maximum Operating Speed |
|
ACD-M105 |
105 × 1.0 × 16 |
14,500 rpm |
80 m/s |
|
ACD-M115 |
115 × 1.0 × 22.23 |
13,300 rpm |
80 m/s |
|
ACD-M125 |
125 × 1.0 × 22.23 |
12,250 rpm |
80 m/s |
|
ACD-M180 |
180 × 1.6 × 22.23 |
8,500 rpm |
80 m/s |
|
ACD-M230 |
230 × 1.9 × 22.23 |
6,650 rpm |
80 m/s |
Note: The specifications above are common options. Always follow the maximum rotational speed and maximum operating speed marked on the cutting disc.
XMF resin-bonded cutting discs are designed for dry, straight cutting of carbon steel, stainless steel and other common metals. Manufactured with selected abrasive grains, a resin bonding system and fiberglass reinforcement, these thin cutting discs provide fast, sharp cutting, a narrow kerf and stable operation for metal fabrication, equipment manufacturing, installation, maintenance and workshop use.
Key Features:
- Fast, Sharp Cutting: Helps improve efficiency in general metal-cutting applications.
- Thin-Disc Design: Produces a narrow kerf and helps reduce material loss.
- Stable Construction: Fiberglass reinforcement helps improve structural strength and operating stability.
- Balanced Performance: Provides a practical balance of cutting efficiency, service life and cost.
- Customization Support: Multiple sizes, abrasive formulations, label designs, packaging and OEM options are available.
