500-1000ml IV Fluid 0.9%NaCl PP Bottle Parenteral Solution Blowing Machine Turnkey Project

Product Description

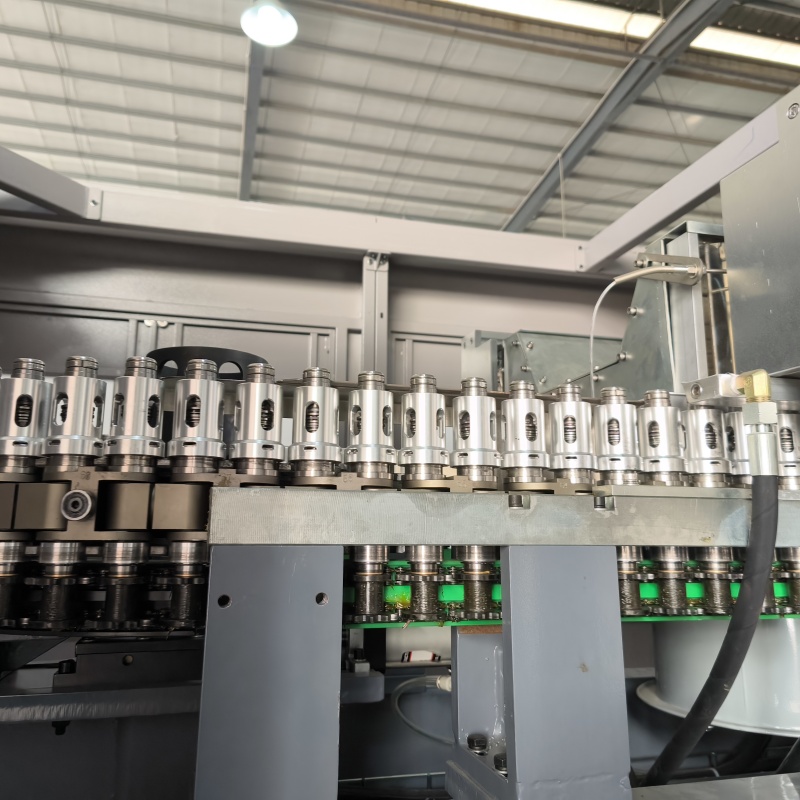

SIV series fully automatic pp infusion bottle Blowing Machine is a high performance linear line type bottle blowing machine which is newly developed according to IV solution industry requirement. It can meet different requirement of different size (100-1000ml), with capacity range from 2000 bottle/hour to 20000 bottle/hour. This machine has the feature of automatic, humanized and intelligent with stable performance and quick and simple maintenance. It has the characteristics of high production efficiency, more energy saving and low production cost, etc.

PP Bottle blowing machine parameter

PP Bottle	Item	Unit	LS-SFDT2	LS-SFDT4		LS-SFDT6		LS-SFDT8		LS-SFDT 10		LS-SFDT 12		LS-SFDT 15		LS-SFDT16
MOLDING	Clamping force	kg	20000	40000		45000		52000		55000		65000		65000		65000
	Clamping stroke	mm	70*2	70*2		70*2		70*2		70*2		70*2		70*2		70*2
	Strech rod stroke	mm	250	250		250		300		240		240		220		220
	Base mold stroke	mm	40-100	40-100		150		90-200		150		150		125		125
	Cavity Pitch	mm	95.25	95.25		95.25		95.25		95.25		95.25		76.2		76.2
	Number of cavity	cavity	2	6		6		8		10		12		15		15
	Spindle chain pitch	mm	50.8	50.8		50.8		50.8		50.8		50.8		50.8		50.8
CONTAINER	Capacity	cc	100-1000	100-1000		100-1000		100-700		100-500		100-500		100-500		100-250
	Neck inner diameter	mm	18-25	18-25		20-28		18-25		18-22		18-22		18-22		18-22
	Neck height	mm	10-25	10-25		18-25		10-25		10-25		10-25		10-25		10-25
	Support-ring diameter	mm	32	32		42		32		28-32		28-32		28-32		28-32
	Perform height	mm	120	100		130		150		100		100		90		90
	Max.diameter	mm	88	88		88		85		86		86		70		70
	Max.height	mm	280	280		240		280		225		225		200		200
OUTPUT		B.P.H	800-3200									11000-19200		14000-24000
ELECTRICAL SYSTEM	Number of oven	pcs	6	8			10	11			13	16		20		20
	Number of lamp	pcs	42	54			70	99			91	126		120		120
	Total installed power	kw	95	128			150	242			222	302		295		295
	Max.heating power	kw	63	108			140	198			182	252		240		240
	Power supply	一	360-400V 50/60HZ
	Power consumption	kw.h	55		78		90(0.5L)		112		166		225		220		235
AIR SYSTEM	Operating pressure	kg/cm2	9		9		9		9		9		9		9		9
	Low pressure consumption	L/min	2500		2500		3500		4000		3600		4000		4500		5500
	Blowing pressure	kg/cm2	20-28		20-28		20-28		18-25		18-20		18-20		18-20		18-20
	High pressure consumption	L/min	2200		2900		3550		4500		4750		5800		6600		7200
CHILLED WATER	Operating pressure	kg/cm2	5		5		5		5		5		5		5		5
	Temperature range	°C	5-15		5-15		5-15		5-15		5-15		5-15		5-15		5-15
	Consumption	kcal/hr	18000		1800		31500		32000		35000		42000		52500		57500
	Flow rate	L/min	120		120		180		160		200		240		300		400
COOLING WATER	Operating pressure	kg/cm2	3		3		3		3		3		3		2		3
	Temperature range	°C	20-30		20-30		20-30		20-30		20-30		20-30		20-30		20-30
	Consumption	kcal/hr	30000		30000		26250		36000		35000		47250		52500		57500
	Flow rate	L/min	150		150		150		180		200		270		300		400
MACHINE	Size(LWH)	meter	800047003600		800047003600		810043003600		1048053003800		1130055003850		1296055003850		1060056003950		1160056003950
	Weight	kg	6500		8500		13500		16000		18500		20000		22000		23000

Our two-step PP IV infusion bottle production lines offer significant advantages. We provide high-quality, high-speed 24,000 BPH machines to many pharmaceutical factories in China. These lines are also sold in the Middle East (e.g., Saudi Arabia, the UAE) and South America (e.g., Brazil, Mexico).

We have spare parts warehouses and professional engineers in many regions, allowing us to quickly solve after-sales problems. Our machines stand out for their stable performance, fast production speed, and unbeatable price-performance ratio, making them the top choice for customers worldwide who need reliable and efficient solutions.
