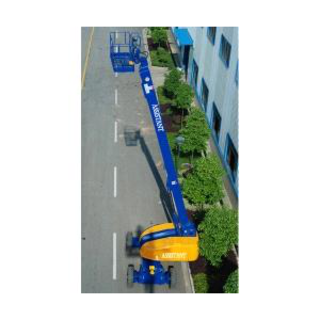

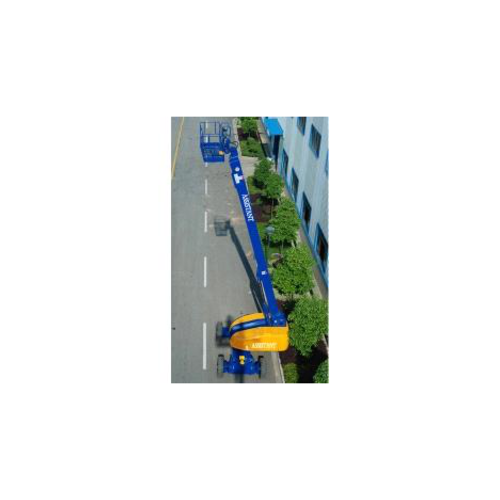

Telescopic Man lift 20-22M
Product Description
Specifications
Description
telescopic boom lift ,Articulated working platform , workingplatforms , Java platforms , Java Se binary , self propelled working platform
Measurements Specifications
| MODEL | GTBZ20 | GTBZ22 | |||
| MEASUREMENTS | Metric | US | Metric | US | |
| Working height maximum * | 22.4m | 73ft | 23.9m | 78ft | |
| Platform height maximum | 20.7m | 68ft | 22.2m | 73ft | |
| Horizontal reach maximum ** | 19.1m | 63ft | 20.2m | 66ft | |
| Below ground reach | 1.76m | 5ft9in | 2.93m | 9ft7in | |
| A | Platform length-8ft model | 0.91m | 3ft | 0.91m | 3ft |
| Platform length-6ft model | 0.76m | 2ft | 0.76m | 2ft | |
| B | Platform width-8ft model | 2.44m | 8ft | 2.44m | 8ft |
| Platform width -6ft model | 1.83m | 6ft | 1.83m | 6ft | |
| C | Height-stowed | 2.7m | 9ft | 2.7m | 9ft |
| D | Length-stowed | 9.59m | 31ft | 10.69m | 35ft |
| E | Width | 2.49m | 8ft | 2.49m | 8ft |
| F | Wheelbase | 2.5m | 8ft | 2.5m | 8ft |
| G | Ground clearance-center | 0.43m | 1ft5in | 0.43m | 1ft5in |
| PRODUCTIVITY | |||||
| Lift capacity (restricted) | 480kg | 1056lbs | 480kg | 1056lbs | |
| Lift capacity (non-restricted) | 340kg | 748lbs | 250kg | 551lbs | |
| Platform rotation | 160° | 160° | |||
| Jib rotation | -- | 135° | |||
| Turntable Swing | 360°continuous | 360°continuous | |||
| Turntable tail swing | 1.19m | 4ft | 1.19m | 4ft | |
| Travel speed -stowed | 6.3km/h | 3.9mph | 6.3km/h | 3.9mph | |
| Travel speed -raised or extended | 1.3km/h | 0.8mph | 1.3km/h | 0.8mph | |
| Gradeability -stowed (2WD) | 30% | 30% | |||
| Gradeability -stowed (4WD) | 45% | 45% | |||
| Turning radius - inside | 3.0m | 9ft7in | 3.0m | 9ft7in | |
| Turning radius –outside Turning radius - axle extended outside | 5.2m | 16ft8in | 5.2m | 16ft8in | |
| Controls | 24V DC Proportional | 24V DC Proportional | |||
| Solid tires | 9.00-20 | 9.00-20 | |||
| POWER | |||||
| Power source | Lovol 1004-4 78 hp (58kw) Perkins 400 61hp (45.5kw) Cummins B3.3NA-C60 4 60HP (45kw) | ||||
| Auxiliary power unit | 24V DC | 24V DC | |||
| Hydraulic tank capacity | 190L | 190L | |||
| Fuel tank capacity | 150L | 150L | |||
| WEIGHT | |||||
| 2WD | 13000kg | 28660lbs | 13140kg | 28968lbs | |
| 4WD | 13080kg | 28836lbs | 13220kg | 29145lbs | |
| STANDARDS COMPLIANCE EN280, JG/T5101, Q/ADZV001-2008 |
GTBZ20 Range of Motion GTBZ22 Range of Motion
Terms
| FOB Price: | NEGOTIABLE |
| Minimum Order: | 1 SET |
| Port: | SHANGHAI |
| Payment Terms: | T/T |
